Home ·Products ·Double Metal Reinforced Sheet ··CS2070

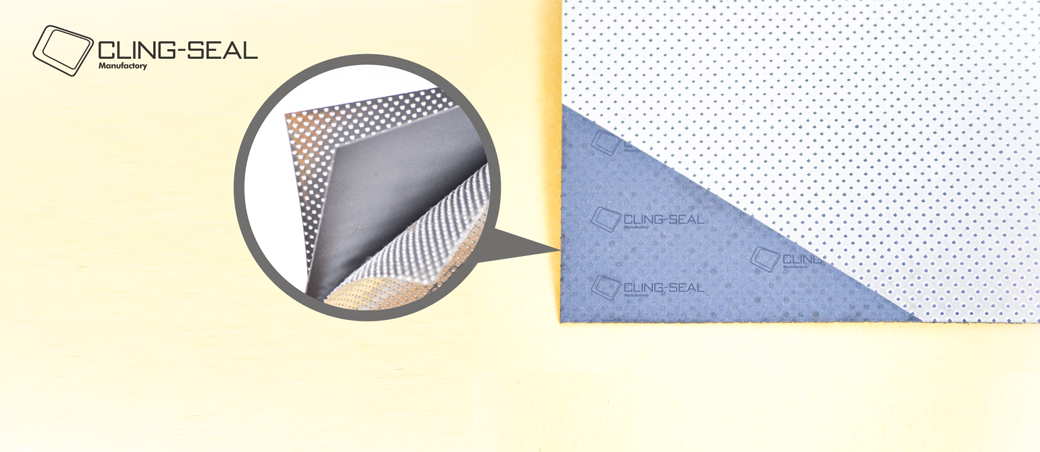

CS2070  Double Perforated Metal Reinforced With Non-Asbestos Insert

Double Perforated Metal Reinforced
With Non-Asbestos Insert

CS2070
More about buy>

From this page you can purchase exhaust gasket sheet from 1.0 to 3mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.
General Properties of exhaust gasket sheet is made from two sides 0.2-0.25mm tanged tinplate with non asbestos beater sheet insert. It generally used in high temperature and high pressure environments, and commonly finds applications in steam exhaust applications.
If you can’t find what you’re looking for, of require a bespoke material, please do not hesitate to contact us.
Is exhaust gasket sheet the Best Material for My Application? If you are unsure as to which material is best for your application then you can consult our gasket material selector, or our guide to rubbers. Material specifications can be downloaded from the link on the left of this page.
Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.

Product Specification
• Supplier = Cling-Seal
• Condition = New
• Thicknesses Available = 1.0mm- 3mm;3.0mm-6.0mm
• Sheet Size Available = 500*500mm,500*1000mm,1000*1000mm,1000*1500mm,Etc

Item Data
Compressibility (%,at 34.5 MPa) 8-17
Recovery(%) ≥35
150℃,At ASTM 3#Oil for 5hours Weight Increase(%) ≤30
Thickness Increase(%) ≤20
At 21℃~30℃,ASTM B Fuel for 5hours Weight Increase(%) ≤30
Thickness Increase(%) ≤20

Product Technical Details
As a general rule, exhaust gasket sheet is:
• Good for use with steam
• Good ozone resistance
• Good with high pressure

Customer Service
We are happy to answer any questions that you might have about this product. Please contact us for more information.
