From this page you can purchase asbestos sheet coated
graphite from 1.0 to 3mm thickness. Remember that as a
general rule you should select the thinnest material
possible for your application.

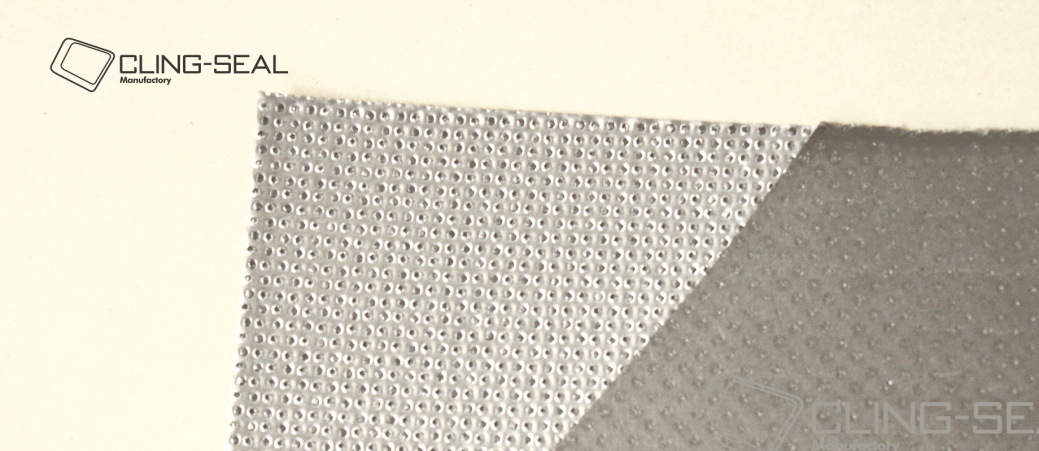

General Properties of asbestos gasket sheet coated graphite
is made from two sides asbestos beater sheet coated graphite
double surface with 0.2-0.25mm perforated metal insert. It
generally used in high temperature and high pressure
environments, and commonly finds applications in steam
cycling or exhaust applications.
If you can’t find what you’re looking for, of require a
bespoke material, please do not hesitate to contact us.
Is asbestos gasket sheet coated graphite the Best Material
for My Application? If you are unsure as to which material
is best for your application then you can consult our gasket
material selector, or our guide to rubbers. Material
specifications can be downloaded from the link on the left
of this page.
Alternatively, we are always happy to offer technical help
and advice and so if you require assistance then please do
not hesitate to contact us.
Product Specification
• Supplier = Cling-Seal
• Condition = New
• Thicknesses Available = 1.0mm- 3mm;3.0mm-6.0mm
• Sheet Size Available =
500*500mm,500*1000mm,1000*1000mm,1000*1500mm,Etc
|
Item |
Data |
|
Tensile Strength (MPa，min.) |
≥30 |
|
Compressibility (%,) |
8-18 |
|
Recovery (%) |
≥40 |
|
150℃,
At IRM 903# for 5hours |
Thickness Increase
(%) |
≤10 |
|
Weight Increase (%) |
≤15 |
|
21℃～30℃,
At B Fuel for 5hours |
Thickness Increase
(%) |
≤10 |
|
Weight Increase (%) |
≤15 |
|
Thickness Deviation（mm） |
0.05 |
Product Technical Details
As a general rule, asbestos gasket sheet coated graphite is:
• Good for use with oil
• Good ozone resistance
• Good with natural gas
