From this page you can purchase reinforced non asbestos
sheets from 1.0 to 3mm thickness. Remember that as a general
rule you should select the thinnest material possible for
your application.

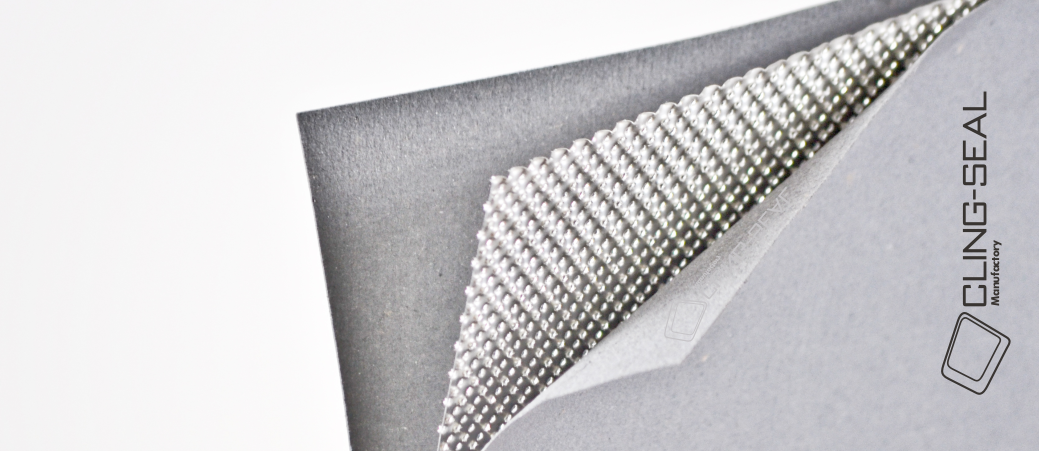

General Properties of non asbestos gasket sheet is made from
two sides non asbestos beater sheet with 0.2-0.25mm
perforated metal insert. It generally used in high
temperature and high pressure environments, and commonly
finds applications in steam cycling or exhaust applications.
If you can’t find what you’re looking for, of require a
bespoke material, please do not hesitate to contact us.
Is reinforced non asbestos gasket sheet the Best Material
for My Application? If you are unsure as to which material
is best for your application then you can consult our gasket
material selector, or our guide to rubbers. Material
specifications can be downloaded from the link on the left
of this page.
Alternatively, we are always happy to offer technical help
and advice and so if you require assistance then please do
not hesitate to contact us.
Product Specification
• Supplier = Cling-Seal
• Condition = New
• Thicknesses Available = 1.0mm- 3mm;3.0mm-6.0mm
• Sheet Size Available =
500*500mm,500*1000mm,1000*1000mm,1000*1500mm,Etc
|
Item |
Data |
|
Tensile Strength (MPa，min.) |
≥30 |
|
Compressibility (%,) |
8-18 |
|
Recovery (%) |
≥40 |
|
150℃,
At IRM 903# for 5hours |
Thickness Increase
(%) |
≤10 |
|
Weight Increase (%) |
≤15 |
|
21℃～30℃,
At B Fuel for 5hours |
Thickness Increase
(%) |
≤10 |
|
Weight Increase (%) |
≤15 |
|
Thickness Deviation（mm） |
0.05 |
Product Technical Details
As a general rule, non asbestos gasket sheet is:
• Good for use with oil
• Good ozone resistance
• Good with natural gas
