CSP200 Asbestos PTFE Packing(Oil)

Asbestos PTFE Packing(Oil)
CSP200

More about buy>

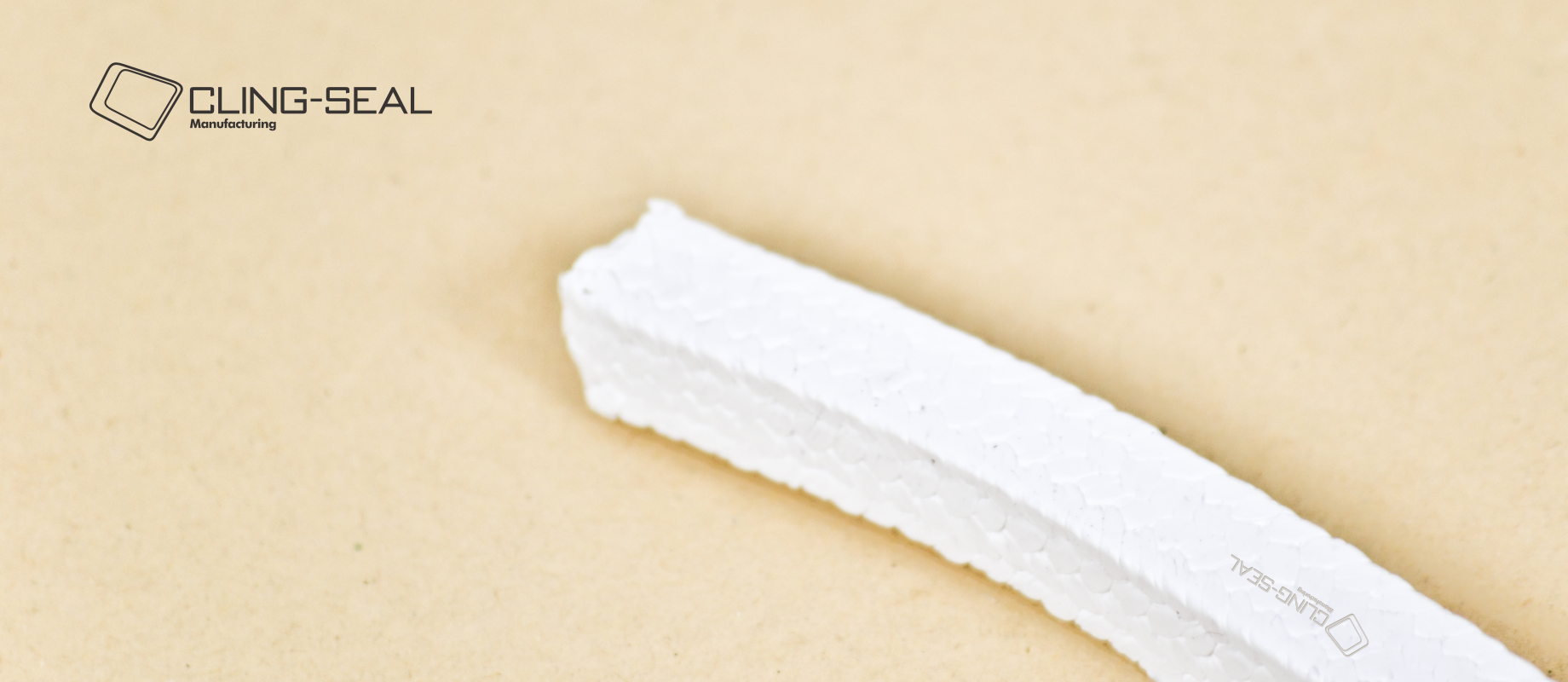

The packing is made of white asbestos fiber cords impregnated with PTFE dispersion.(Addtition of lubricant is operational.) It is soft in texture and suitable as the sealing of pumps for liquidated chemicals. However, packing impregnated with lubricants is reco-mended for use with reciprocating pumps or for the sealing in places where linear velocity is up to 10m/s.


Size:

mm 3 4 5 6 8 10 11 12 14 16 18 20 22 25
inch 1/8" 5/32" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 11/16" 3/4" 7/8" 1"
m/kg
abt.
42 25 14 12 8.5 5.8 4.6 4.2 3.3 2.6 2 1.8 1.4 1.1

PTFE

Packings made from PTFE (polytetrafluoroethylene) are a mainstay of the mechanical compression packing industry. PTFE is well known for its outstanding resistance to chemical attack, low coefficient of friction and wide temperature tolerance including cryogenic service. This wide flexibility makes PTFE packings a popular choice for those difficult applications where strong solvents, corrosive chemicals and oxidising media require to be sealed. ClingSeal have harnessed these properties in our range of PTFE based gland packings to give an enormously wide sealing capability in both valve and pumping applications.
