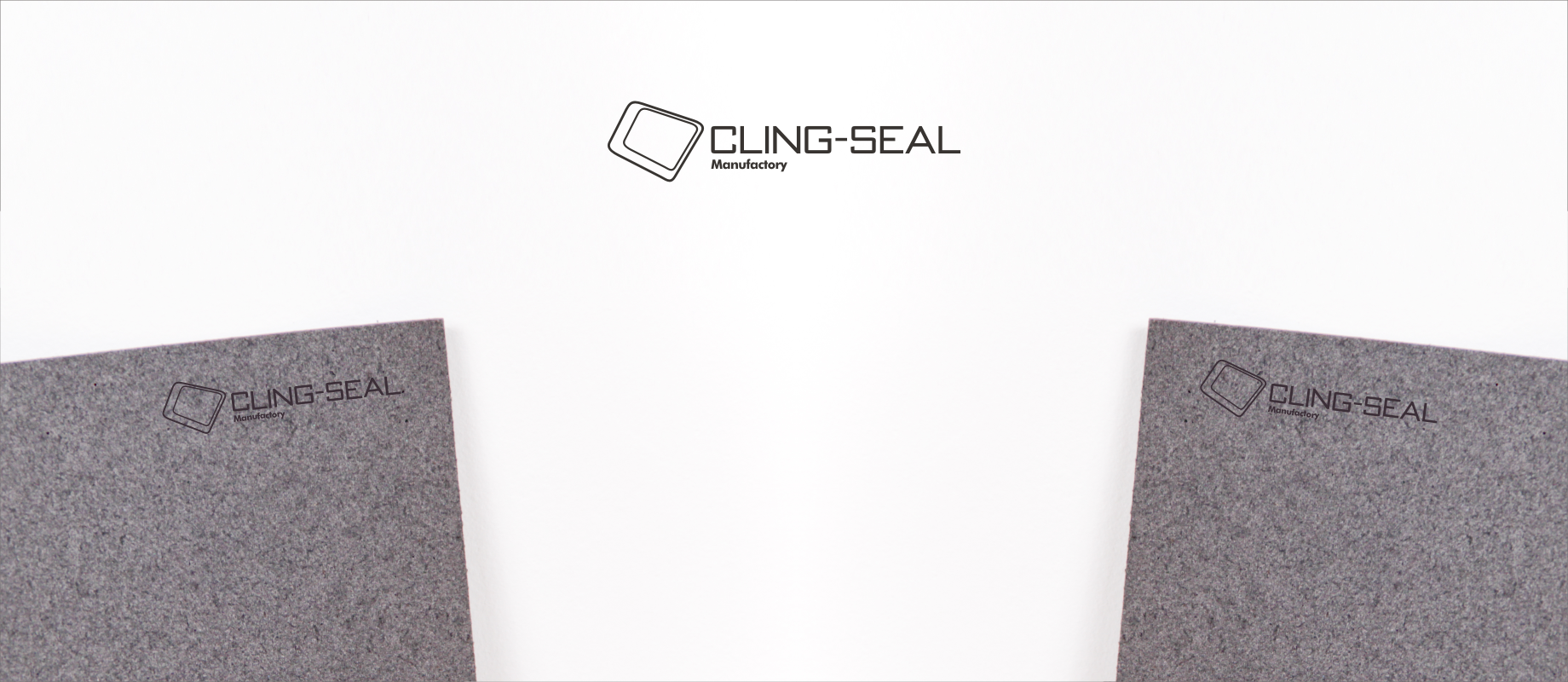

CS-C70 Non-Asbestos Beater Sheet

Non-Asbestos Beater Sheet
CS-C70

More about buy>

It take beater methods ,use aramid,synthetic fiber and rubber to molding.
Application:Usual with tanged or flat metal to make reinforced gasket sheet.
Temperature:150-250Deg.

Item	Data
Density g/cm³	0.9-1.1
Tensile Strength Mpa	2.5
Compressibility ≥%	40±7
Recovery ≥%	20
Stress Relaxation ≤%	30
In 150±2℃,20# Aviation Fuel for 30min	Oil Absorption Rate≤50%
In 150±2℃,20# Aviation Fuel for 30min	Thickness Increase≤6%
In 15-30℃Water for 5hours	Thickness Increase≤6%
