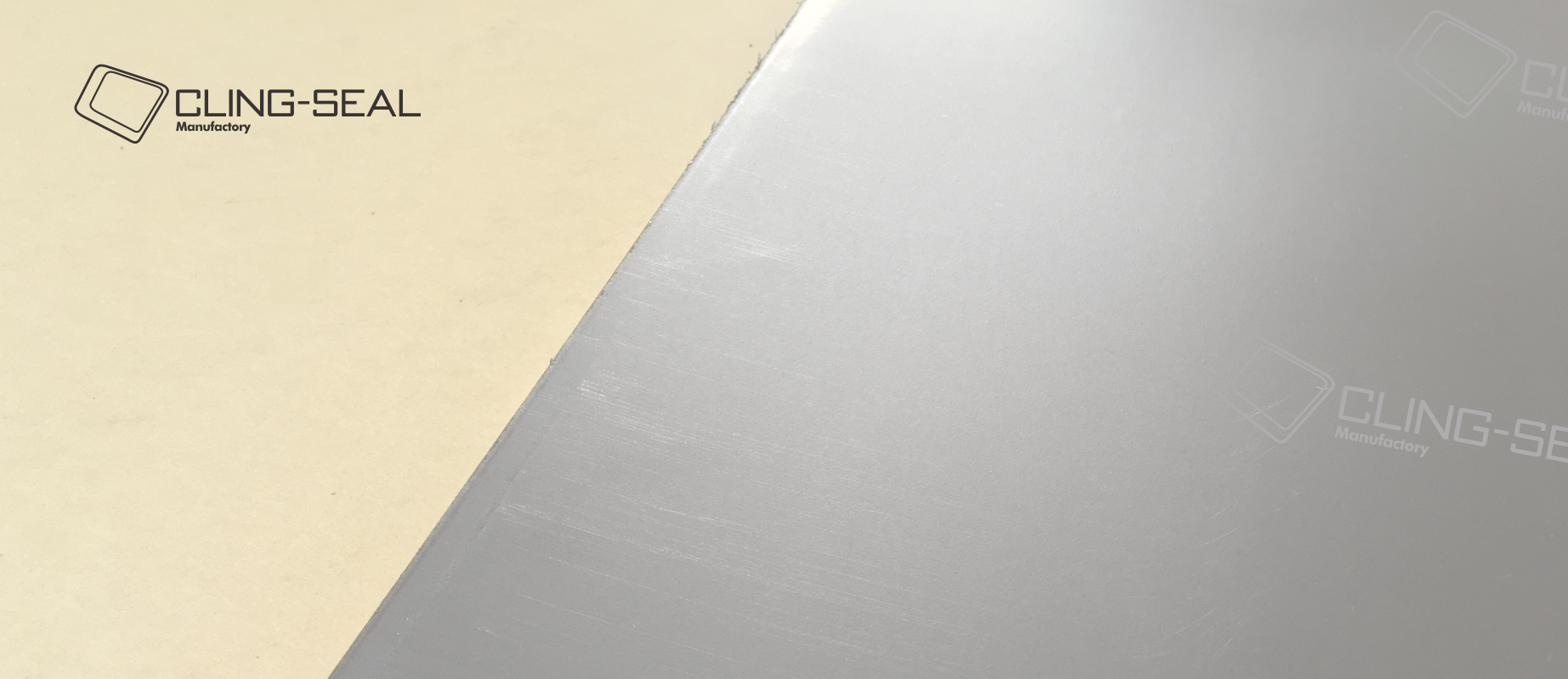

CS-G80 Flexible Graphite Sheet

Flexible Graphite Sheet
CS-G80

More about buy>

From this page you can purchase flexible graphite sheet from 0.4 to 3mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.
General Properties of Flexible graphite sheet is made from high pure flake graphite powder. Carbon content from 93%-99% . It generally used in high temperature and high pressure environments, and commonly finds applications in steam cylinder or exhaust applications.
If you can’t find what you’re looking for, of require a bespoke material, please do not hesitate to contact us.
Is Flexible graphite the Best Material for My Application? If you are unsure as to which material is best for your application then you can consult our gasket material selector, or our guide to rubbers. Material specifications can be downloaded from the link on the left of this page.
Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.

Product Specification
Supplier = Cling-Seal
Condition = New
Thicknesses Available = 0.3-3.0mm
Sheet Size Available = 500*500mm,500*1000mm,1000*1000mm,1000*1500mm,Etc

Item Data
Density g/cm³ 1.0
Working Temperature -200 ~ 1200Deg.C
( In Non Oxidizing Atmosphere)
Threshold Temp. For Oxidation 500 Deg.C
( a temp at which weight reduced 1% during 24 hrs in air)
Tensile Strength Mpa >70kgf/cm²
Compressive Strength >800kgf/cm²
Carbon Content>% 98
Ash Content<% 1.0
Compressibility ≥% 20-30
Recovery ≥% 30

Product Technical Details
As a general rule, flexible graphite sheet is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service
We are happy to answer any questions that you might have about this product. Please contact us for more information.
